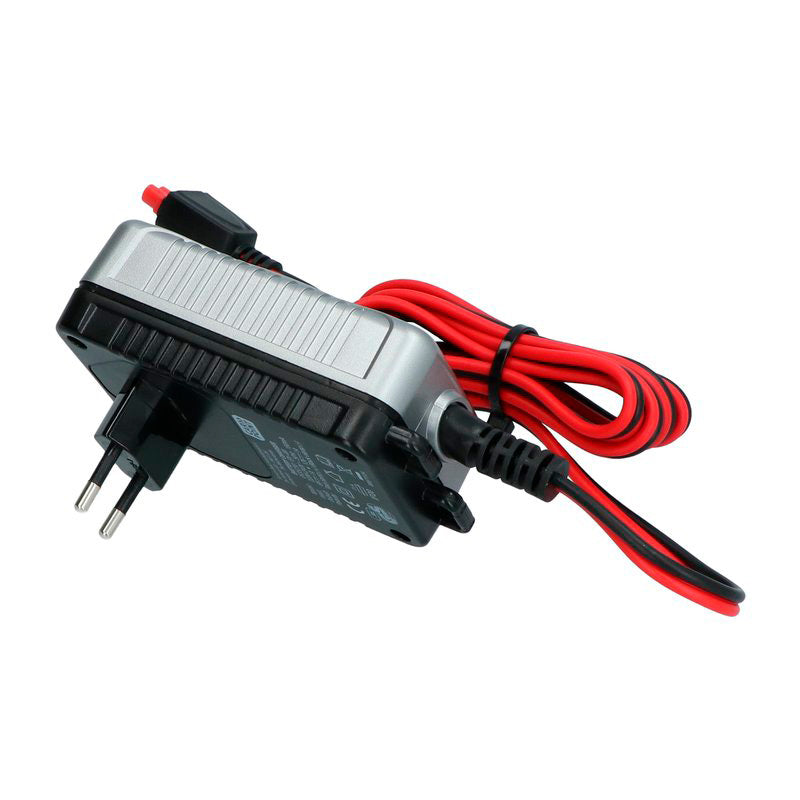

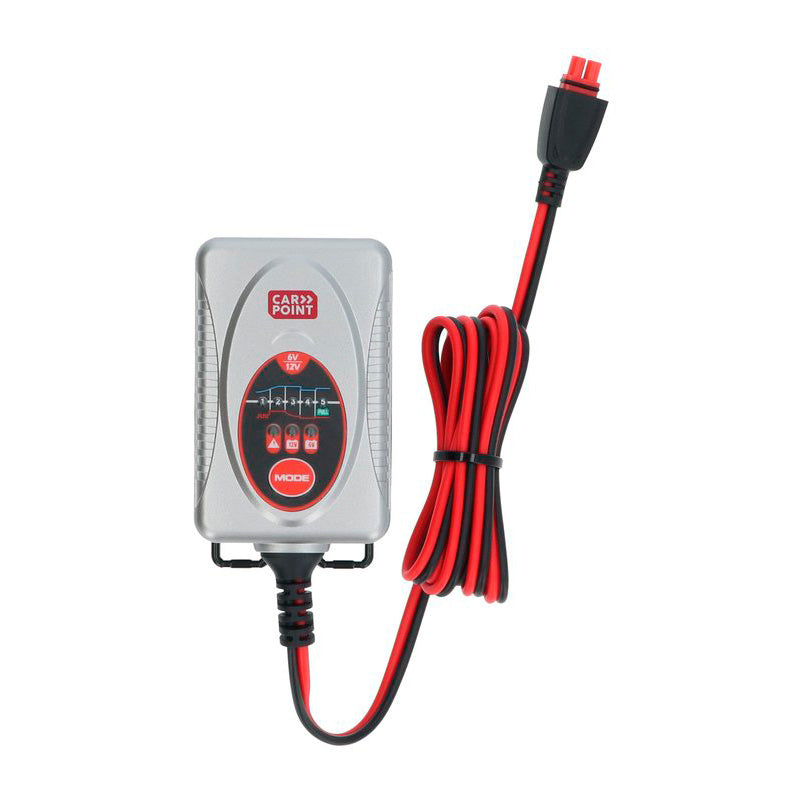

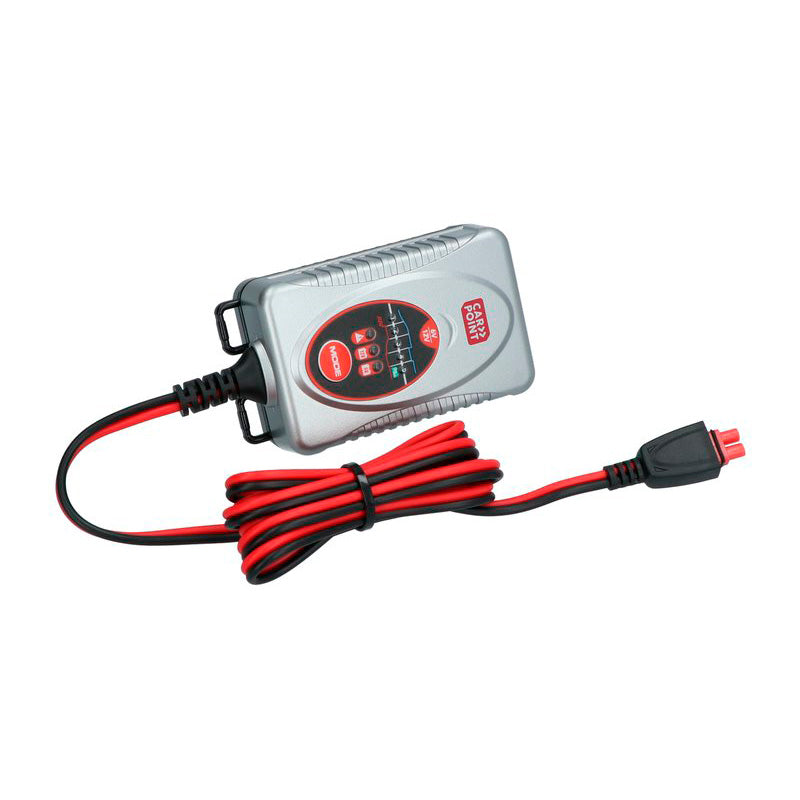

Carpoint BX-4M 6V/12V Battery Charger 1 Ampère

Beschreibung

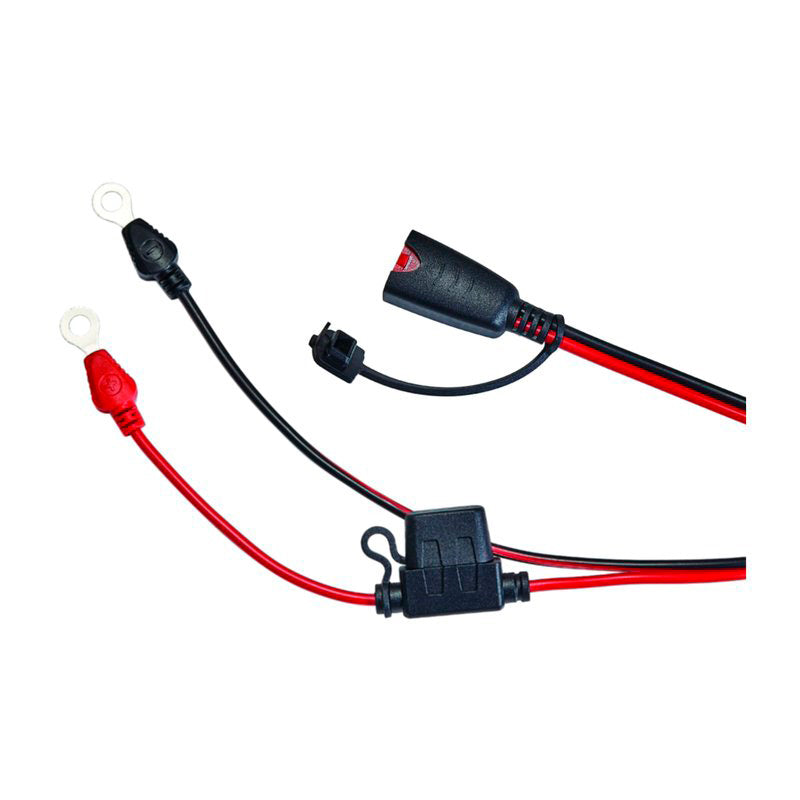

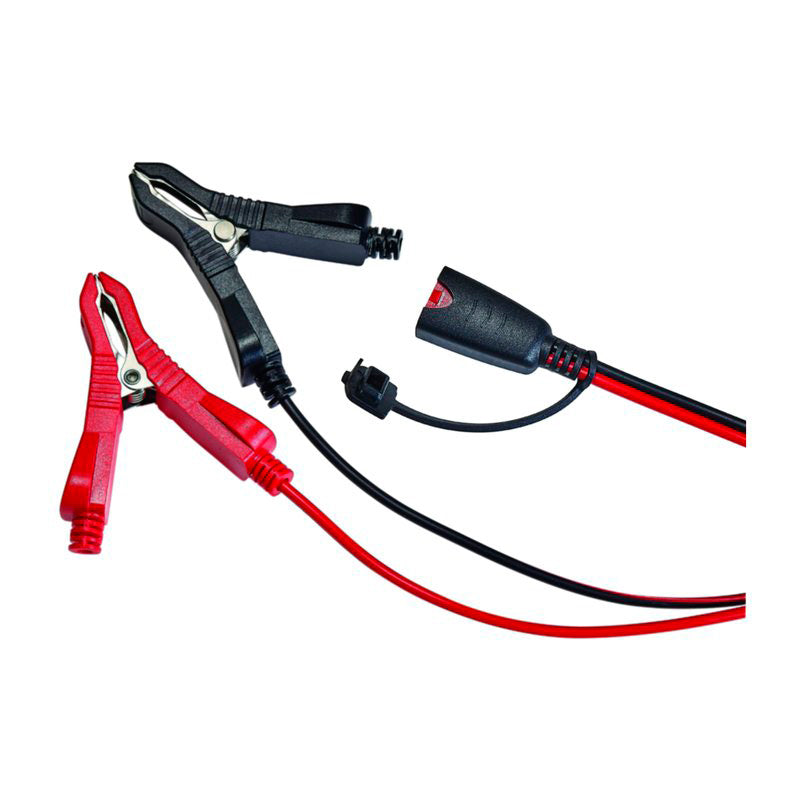

This Carpoint BX-4M battery charger is suitable for charging 6 and 12 volt 1.2 to 20 amp lead-acid batteries. The battery charger goes through a fully automatic charging cycle in 5 steps: Recovery phase, highly discharged battery can be restored. Bulk phase, maximum charging current of 80% of energy is charged. Absorption phase, charging until almost 100% is reached. Analysis phase, Checking the state of charge. Float phase, Battery fully charged and maintained at maximum level with low charge current. Charge current is 1 amp maximum. The CP-4M battery charger comes with two different colour coded cables. One cable equipped with battery terminals for charging disconnected batteries and one cable with eye terminals (Ø6.3mm) and 10 Amp fuse for permanently connected batteries . Both cables are equipped with a quick connector. Clear display with: mode key to switch between 6 and 12 Volts, Control indicator lights (Error message and 6 or 12 Volt mode), Charge indicator lights in which of the 5 steps in the charging cycle is charging.

Technical data:
* Input voltage AC: 220-240VAC 50Hz
* Output voltage: Nominal: 6V / 12V
* Input current: Maximum 0.18A RMS
* Minimum battery voltage: >2.5V
* Output power: 14.4W * Efficiency: 80%
* Charge current: 1A maximum * Return current: <10 mA
* Standby power: < 1W * Ambient temperature: 0°C to 40°C
* Charger type: Five-step, fully automatic, multi-mode charging
* Battery types: 6V / 12V rechargeable acid-lead batteries (WET, MF, VRLA, AGM and GEL)
* Battery capacity: 1.2-20Ah
* Dimensions (l x w x h): 109.4x65x38.5mm
* Protection housing: IP20 (dust-free) for indoor use only
* Weight: 0.35kg
* Noise level: <50 dB (tested at a distance of 50 cm)
Suitable for 6 and 12 Volt 1.2 to 20A rechargeable acid-lead batteries (WET, MF, VRLA, AGM and GEL)
Fully automatic charging cycle in 5 steps
Two different colour coded cables (with battery clamps or eye connector) and quick connector
